CNC turning is the standard way to make round parts: shafts, pins, bushings, spacers, sleeves, threaded fittings and hub components. The workpiece spins while the cutting tool shapes its diameters, faces, grooves and threads.
This guide explains which parts suit CNC turning, how to prepare a drawing, and what to expect when you source CNC turned parts from a machine shop in Taiwan.
Parts that suit CNC turning
If your part is mostly round, turning is usually the fastest and cheapest way to make it.
- Shafts, axles, pins and dowels

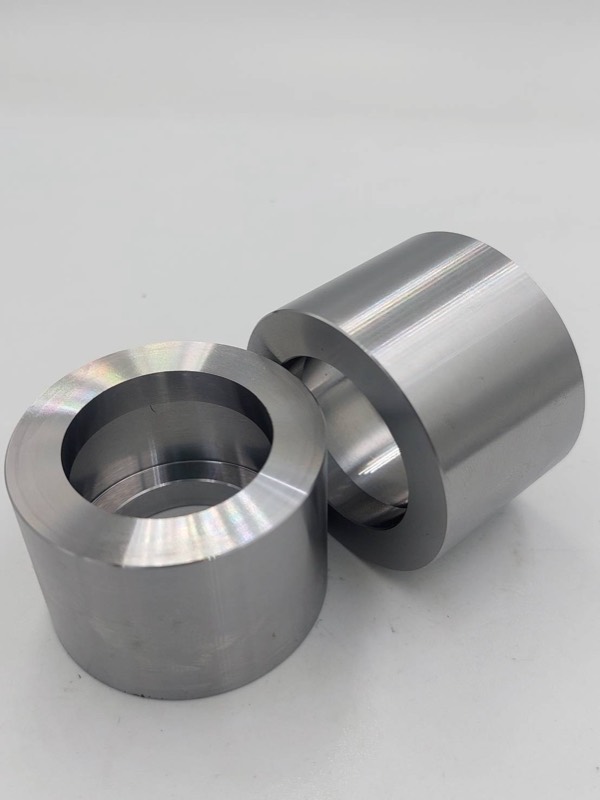

- Bushings, sleeves and spacers
- Threaded fittings, nuts, adjusters and end caps
- Bicycle hub axles, spacers and small hub components
- Motorcycle and automotive pins, bolts and adapters
- Rollers and small components for automation equipment
Turned parts with milled features
Many turned parts also need flats, cross holes, slots or holes around a flange. These features can be finished on a 4.5-axis machining center after turning, so one supplier handles the whole part.
Materials and finishes
We mainly machine aluminum alloys and alloy steel. If your part needs another material, tell us in the quote request and we will confirm whether we can make it.
Aluminum turned parts are often anodized for color and corrosion resistance. Anodizing adds a thin layer to the surface, so tight-fitting diameters and threads may need allowance or masking.
Tolerances
We machine metal parts to a tolerance of 0.02 mm. Put a general tolerance in the title block and call out only the dimensions that really need to be tighter — bearing seats, mating diameters, thread classes. Tight tolerances on every feature raise cost without improving the part.
How to get a quote for turned parts
A complete request gets an accurate price faster. Send:
- A 3D model (STEP preferred) and a 2D drawing (PDF) with tolerances and thread callouts
- Material and any heat treatment
- Surface finish or anodizing color
- Quantity per order and expected yearly volume
- Destination country
About our shop
Chi Xin Technology is a CNC machine shop in Nantun District, Taichung, Taiwan, founded in 2022. We run 5+ CNC machines — 4.5-axis CNC machining centers and CNC lathes — and mainly machine aluminum alloys and alloy steel, with a metal tolerance of 0.02 mm. We also offer wire EDM and surface finishing including anodizing, and we export to customers in Europe and North America.
Frequently asked questions
Can you add milled features to turned parts?
Yes. Flats, cross holes, slots and holes around a flange can be finished on our 4.5-axis machining centers after turning.
Do you make prototypes?
Yes. We make prototypes as well as production runs. Tell us your quantity in the quote request.
Can I email my drawings instead of using the form?
Yes. Send your drawings to a0937121023@gmail.com.
